HEX FLIP

Articulating Joint for Tilt Over Towers

$379

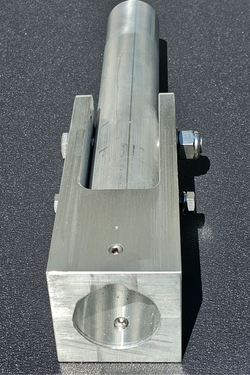

Hex Flip is a 90 Degree Articulating Device that allows you to bring your Hex Beam to the ground on
TIP OVER TOWERS in the upright position to work on or stow. It is a true axial design so it supports your antenna in the center of the mast and held tightly in position with locking bolts. This is a Plug and Play device designed specifically for the VHQ Hex Beam

-7862199035472107565
4507707090380785848
-5543942475945892846
4507707090380785848 (1)
-447232385899169820
337603479285472999
Hex Flip
20230908_113243
20230908_112843
20230908_113225
20230908_112629
20230903_122319_edited
20230903_122347_edited
20230903_122418_edited
20230903_122741_edited_edited

Click On Image To Open

SPECIFICATIONS

6061-T6511 Billet Aluminum

Works on VHQ Hexbeam Antenna

Stainless Steel Hardware

6 Pounds

Added Wind Load .25 Sq. Ft.

Max Antenna Capacity 15 Sq. Ft. Wind Load, 75 LBS.

Wind Rating 100+ MPH

Fits 2 inch mast.

1-1/2" and 1-3/4" adapters available

Maintenance Free

LIFETIME GUARANTEE

​

​

​
